NUTRACEUTICAL & WELLNESS · PMS 3272

One SKU. Six components. Six suppliers. One place it all has to agree.

A supplement isn't a package — it's a stack: bottle, closure, induction liner, label, carton, insert. Each from a different vendor, each with its own spec and lead time, and every printed surface answerable to FDA labeling rules. PackOS holds the whole stack in one record.

Start a Quick Quote → Request an Enterprise Preview →

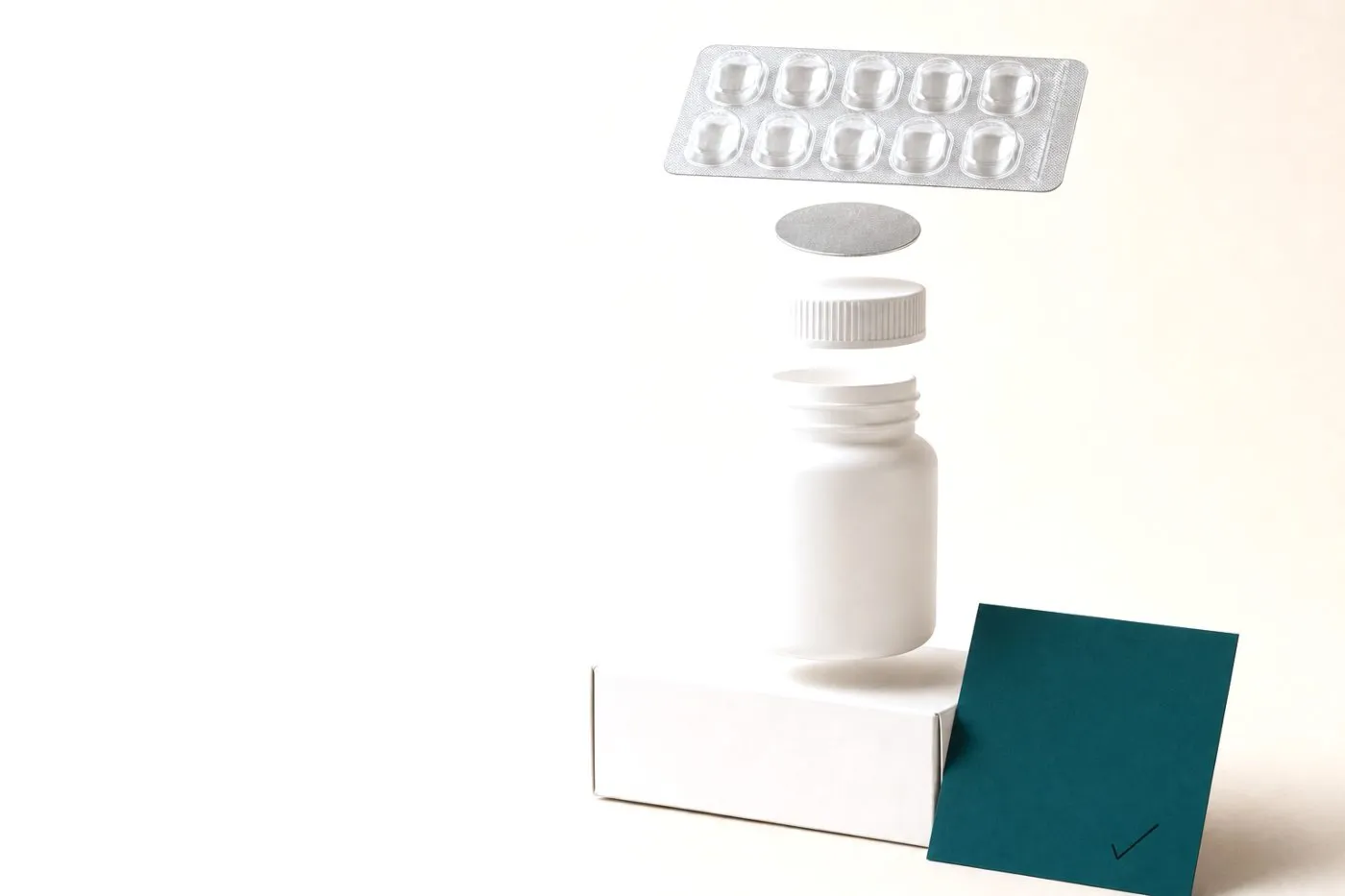

Supplement packaging components exploded in a vertical line: a unit-dose blister strip, a 38 mm induction foil liner, a child-resistant closure, a 150 cc HDPE packer bottle, an SBS folding carton, and a printed leaflet insert leaning against it — FIG. 01 — THE SIX COMPONENTS OF ONE BOTTLE SKU · BLISTER IS THE ALTERNATE DOSE FORMAT · HOVER FOR PRESS PROOF

FIG. 01 — THE SIX COMPONENTS OF ONE BOTTLE SKU · BLISTER IS THE ALTERNATE DOSE FORMAT · HOVER FOR PRESS PROOF

Nº 01 The terrain

Regulated on every printed surface.

Under DSHEA, a structure/function claim carries its own disclaimer rules — exact wording, boldface, a minimum type size, and placement adjacent to the claim. Drift from a structure/function claim into a disease claim and it stops being a copy question. The claim appears on the label, the carton, and the insert, so getting it right is three surfaces, not one.

6+ COMPONENTSin a typical supplement SKU — bottle, closure, liner, label, carton, insert — usually from different suppliers.

2 PANELSFDA labeling anchors everything to the Principal Display and Information panels — Supplement Facts placement isn't a design choice.

1/16″ MINThe DSHEA disclaimer must be boldface, no smaller than one-sixteenth inch, and adjacent to the claim with no intervening material (21 CFR 101.93).

30 DAYSto notify FDA in writing after first marketing a product bearing a structure/function claim. In December 2025 FDA signalled it will revise 101.93(d) to drop the every-panel disclaimer rule — so the surfaces in scope are changing.

DISCLAIMER FORM AND PLACEMENT PER 21 CFR 101.93 · NOTIFICATION WINDOW PER FDA OFFICE OF DIETARY SUPPLEMENT PROGRAMS · PACKOS ORGANIZES YOUR LABELING DATA, IT IS NOT REGULATORY ADVICE

Nº 02 The fit

Turn the cap on. Watch the torque.

Three of the six components have to mate mechanically — bottle neck, induction liner, closure. Turn a matched closure down and torque climbs into the band, the liner compresses, and the weld runs continuous. Stop short and the cap still looks seated. Fit the wrong thread series and it binds at high torque — so torque alone catches neither failure.

TURN THE CAP ON 0.00 TURNS · 0.5 IN-LBS · OPEN

Threads are engaging. The liner has not reached the sealing land yet, so there is nothing to seal.

FIG. 02 — ONE DIMENSION AGREES, THE PARTS STILL DO NOT FIT

THREAD SERIES 400, 410 AND 415 SHARE NOMINAL DIAMETERS AND ARE NOT INTERCHANGEABLE. TARGET TORQUE FOLLOWS THE PUBLISHED RULE OF THUMB — HALF THE CAP DIAMETER IN INCH-POUNDS, SO 18–20 FOR 38 mm INSIDE A GENERAL 17–26 RANGE. A CLOSURE SUPPLIER'S OWN SPEC OVERRIDES THE RULE OF THUMB, WHICH IS WHY IT BELONGS ON THE RECORD. RESPONSE CURVE AND CREST COUNTS ARE SCHEMATIC, NOT TO SPEC.

THE STACK, UNMANAGED

Six purchase orders in six formats for one launch — reconciled by hand.
Supplement Facts revisions that reach the label but not the carton.
A closure change that breaks the liner spec nobody re-checked.
Claims reviewed on one surface, echoed unreviewed on another.
Launch dates set by whichever component nobody was tracking.

THE STACK, ON A RECORD

Every component is a line on one record — spec, supplier, price, lead time.
One artwork revision flags every surface that carries the same copy.
Component compatibility lives in the spec — neck finish, liner, closure agree by construction.
Claims tracked once, versioned across label, carton, and insert together.
The critical path is visible — the slowest component is a status, not a surprise.

Nº 03 How PackOS answers

The record thinks in components.

PROBLEMOne SKU's truth is spread across six supplier threads. IN PACKOSThe packaging record holds every component as a structured line — one source of truth. Available

PROBLEMLabel programs re-quoted from scratch for every run and size. IN PACKOSQuick Quote structures label pricing from your artwork or last invoice. Available

PROBLEMSupplement Facts revisions drift between label, carton, and insert. IN PACKOSArtwork Intelligence versions every surface against the same record. In Preview

PROBLEMSix components, six vendors, zero shared status. IN PACKOSOrder management runs the stack as one controlled order. In Preview

Nº 04 The signature problem

Explode the SKU. Click any component.

This is one product — a 60-count capsule SKU — as PackOS sees it: a stack of components, each with its own supplier, spec, and compliance surface.

PACKAGING RECORD · SKU-2210 · 60-CT CAPSULECLOSURE

COMPONENT
SPEC
SUPPLIER
COMPLIANCE SURFACE
SAME CLAIM COPY ON
LEAD TIME

6 COMPONENTS · 6 SUPPLIERS · 1 RECORD — CLICK THE STACK TO WALK IT.

FIG. 03 — SKU-2210 EXPLODED · SIX COMPONENTS ON ONE ASSEMBLY AXIS

ILLUSTRATIVE RECORD FOR DEMONSTRATION. PACKOS ORGANIZES YOUR LABELING AND COMPONENT DATA; IT IS NOT REGULATORY ADVICE.

Nº 05 The schedule

Six lead times. One launch date.

The same six records, read as a schedule. Slip a component and watch what actually happens to the launch — most slips are absorbed, and the ones that aren’t are invisible until someone is counting.

DELAY A COMPONENT CARTONon time LINERon time LABELon time

The carton governs. Every other component has float — the room it can slip before the launch date moves at all.

FIG. 04 — LEAD TIMES FROM THE SAME SIX RECORDS

LEAD TIMES ARE THE ILLUSTRATIVE RECORD SHOWN IN FIG. 03 — NOT A QUOTE. REAL SCHEDULES DEPEND ON YOUR SUPPLIERS, VOLUMES AND ARTWORK STATE.

We make the stack, too. Calyx manufactures bottles, child-resistant closures, labels, and flexible packaging for regulated wellness brands — which is why the record models components the way purchasing actually buys them.

BOTTLES · CLOSURES · LABELS EST. 2016

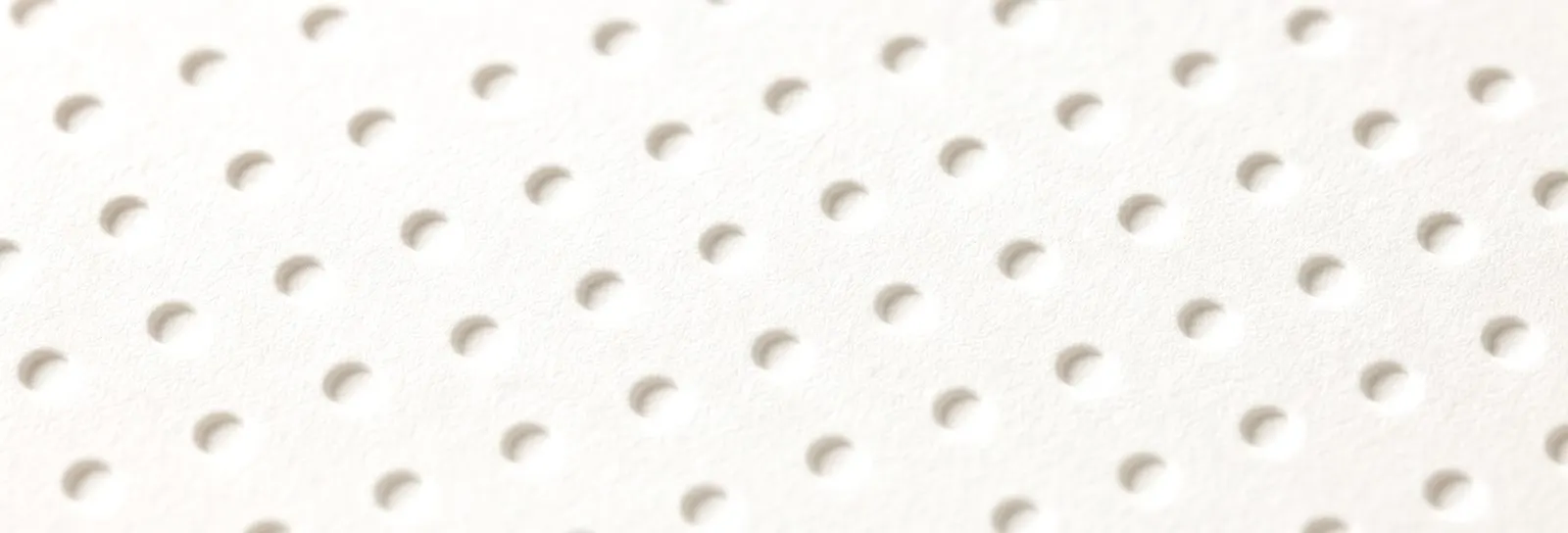

DETAIL 01 — BLIND EMBOSS · CARTON BOARD · DEPTH 110µ

Nº 06 Questions

What wellness brands ask first.

Does PackOS check my Supplement Facts panel?

PackOS tracks your panel as versioned artwork against the record — which revision is approved, which surfaces carry it, and what changed between them. Formal regulatory review stays with your compliance team; they just review one source instead of six.

Can I quote just the label if my bottle supplier is set?

Yes — Quick Quote handles label programs standalone today. The record still tracks your other components so the stack stays coherent, whoever supplies each piece.

We sell AM/PM packet regimens. Can the record handle multi-component products?

That's a record with more lines — each packet, its film, and its printed surfaces tracked under one parent SKU, including the aggregate-panel artwork that FDA formatting expects.

Do you review our claim language?

No — claim substantiation and review belong to your regulatory counsel. What PackOS records is which surfaces carry which claim version and which disclaimer placement each one uses, so a revision can’t reach the label and quietly miss the carton. DSHEA notification and disclaimer form stay your call; the record just makes sure every surface is accounted for.

Put your stack in one place.

Start with the label — the rest of the record builds around it.

Start a Quick Quote → Back to PackOS
